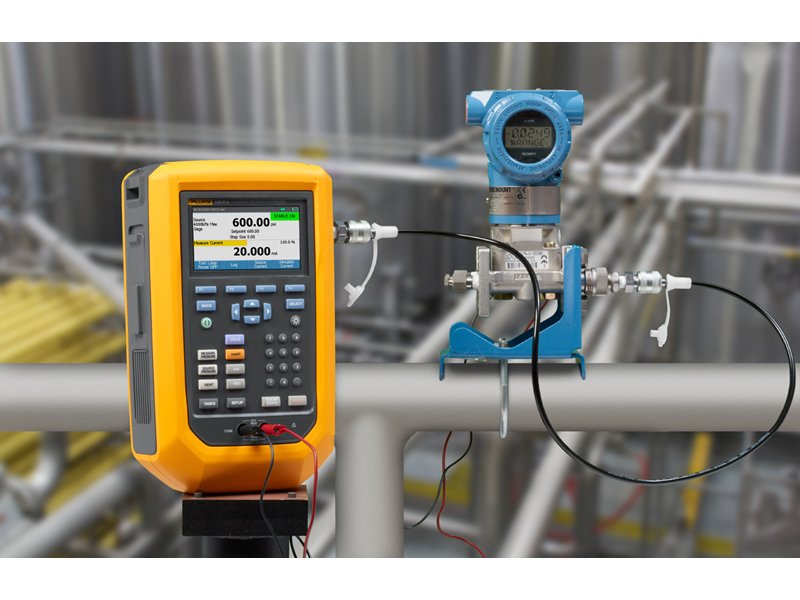

Fluke’s 729Pro Automatic Pressure Calibrator, represented locally by Comtest, is designed specifically with process technicians in mind to simplify pressure calibration and deliver faster, more accurate test results.
Technicians know that calibrating pressure can be a time-consuming task, but the 729Pro makes it easier than ever with an internal electric pump that automatically generates and regulates pressure in an easy-to-use, rugged, portable package.
Automatic pressure generation and control
The Fluke 729Pro allows you to simply type in a target pressure, and the calibrator will automatically pump to the desired set-point. With plug-in replaceable pressure control modules and pressure generation and regulation up to 1000 psi (70bar, 7000 kPa).
Then, internal fine adjustment control automatically stabilises the pressure at the requested value. You can also fill in a test template, and the 729Pro will automatically pump to and document a multiple-point pressure calibration test at the touch of a button.
Easy calibration documentation
The Fluke 729Pro can automatically test multiple pressure test points and automatically document the results. The 729Pro does the work for you by documenting and flagging out-of-tolerance test results in red on the graphical display for:
- Applied pressure
- Measured mA, mV, or digital PV
- % error for each test point
Upload and manage documented calibration results with DPCTrack2TM Calibration Management Software, making it easy to manage your instrumentation, create scheduled tests and reports, and manage calibration data.
HART communication
Built-in HART communication capabilities enable HART transmitter mA adjustments, HART configuration, and the ability to adjust to applied 0% and 100% values. You can also configure various tasks, such as changing a transmitter tag, measurement units, and ranging.
Other supported HART commands include setting fixed mA outputs for troubleshooting, reading device configuration, and variables and reading device diagnostics.
Rugged, portable design
The 729Pro has been tested and is warranted to withstand a 1-meter drop test, making it ready for field instrumentation calibration work.
With two models 4M up to 600 psi (40 bar, 4000 kPa), and 7M up to 1000 psi (70 bar, 7000 kPa) to choose from, the Fluke 729Pro Automatic Pressure Calibrators are designed to perform when and where you need them.
A standard semi-rigid carrying case designed for field work, with room to store test hoses, fittings, test leads, and small hand tools, makes it easy to carry everything needed for field pressure calibrations.
For greater accuracy and resolution on low-pressure calibrations, the Fluke 729Pro allows you to select and insert one of 6 Fluke Pressure Modules to expand the pressure range between 0-600 psi (40 bar, 4000 kPa).
The Fluke 729Pro Key Features:
- Automatic pressure generation and regulation to 1000psi
- Replaceable pressure control modules
- Built-in test templates, one-key calibration
- HART communication
- Pressure leakage testing
- Automatic fine-pressure adjustment, automatic pressure stabilisation
- Powerful, replaceable Li-ion battery
- Quick pressure release valve with a muffler
- Extend measurement range with 750P Series pressure modules.
- Measure temperature with 720RTD probe.
- Bright dual-three-channel /colour graphic display
- Weight <5kg
- Rugged and portable design with standard 3-year warranty
- Absolute and gauge pressure modules up to 7MPa.
- Use the modules to change the Fluke 729Pro to a different output pressure range.
