With advanced infrared sensing technology, these compact sensors ensure reliable data for process control, quality assurance, and equipment protection – even in high speed or hard to reach applications.

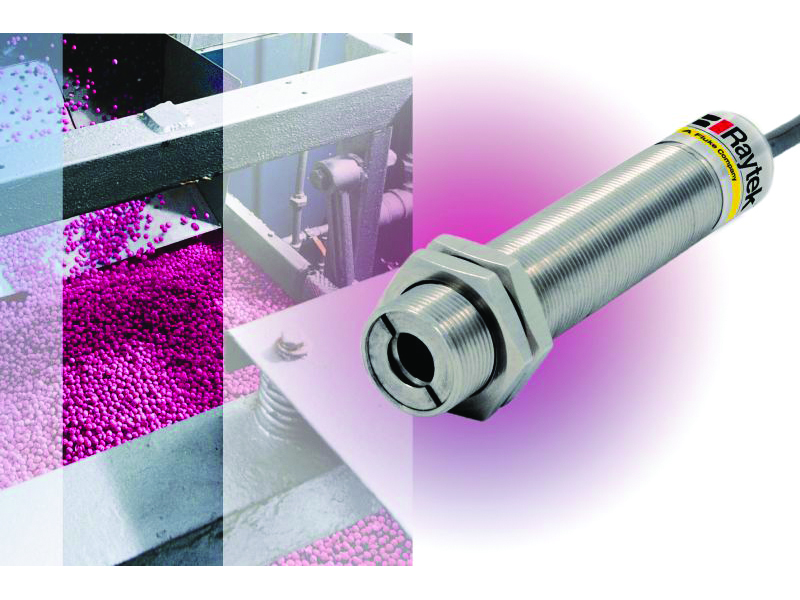

The Thermalert CM provides the advantages of infrared temperature measurement in a compact, low cost integrated sensor.
The CM can easily replace traditional contact probes with a type J or K thermocouple output, or with a 0-5 volt output if your application is susceptible to noise or requires a longer cable run.
The CM is designed to measure target temperatures ranging from -20 to 500°C. The CM’s onboard electronics are protected by a rugged IP65 (NEMA-4) stainless steel housing.
Features include:
- Wide temperature range from -20 to 500°C
- IP 65 (Nema-4) stainless steel electronics housing
- 13:1 optics at 90% energy
- 150 mSec (95%) response time
- Powered by 12-24 VDC at 20mA
- Scalable 0-5V, type J or K Output
- Alarm Output
- Sensor status/self diagnostic indicator LED
- RS232 digital communications for sensor set-up and monitoring
- Adjustable signal processing
- Data Temp Multidrop software compatible
- Accessories for air purging and lens protection
