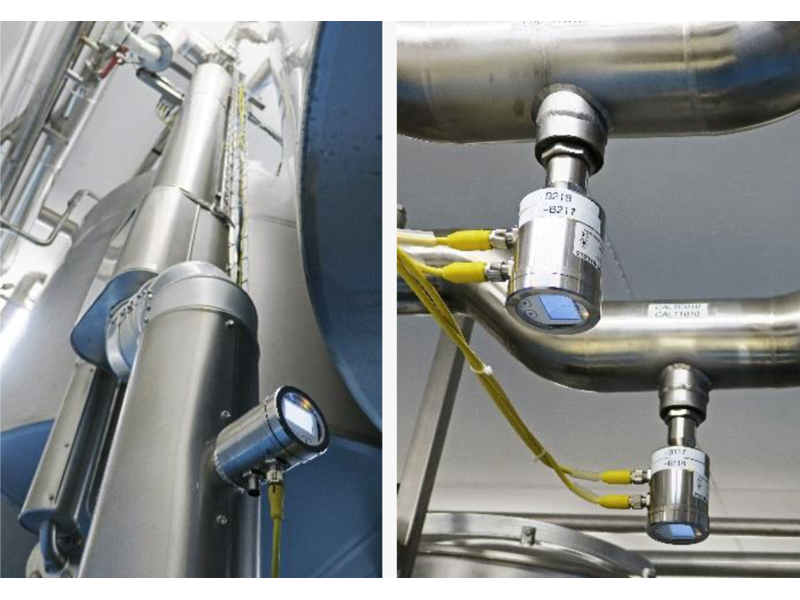

The ILM-4 is a hygienic inductive conductivity meter for liquid media up to 999 mS/cm, with IO-Link.
Benefits in production and CIP / SIP processes:
ILM-4 with IO-Link and 4…20 mA enables an active, automated and temperature compensated phase separation. This applies both to different media in production processes and to the CIP / SIP return flow of acid / caustic/ water.
These media can be drained or returned to the storage tanks in the highest possible grade by means of precise inline conductivity measurement.
The multiple use of the cleaning media ensures in addition maximum cost efficiency and environmental protection.
Benefits in cleaning agents control:
For an optimal and reproducible cleaning result, each cleaning agent must be concentrated to the specified value by re-dosing with concentrate and fresh water. This is ensured by the highly precise measurement of conductivity with the ILM-4.
Advantages of the ILM-4 conductivity sensor:
- Extremely short response time of 1.2s for highest efficiency
- Flex-Hybrid Technology: Digital IO-Link and analog 4…20 mA in parallel
- Accurate phase separation of different media means less resource losses and cost optimization
- Maximum use of the cleaning agents in CIP processes thanks to correct re-guidance into the respective storage tanks
- Minimum cleaning time and water consumption: active switch-over after reaching the desired value by inline analysis and not by passive, pre-set time control
- Precise concentration of the cleaning agents
- Modular design: configurable from the low-cost basic version to the high-end model
Our quality promise: Extended Warranty 5 years
