Automation is a key factor in ensuring that a plant is able to achieve a high level of productivity. However, implementing automated processes in a plant requires suitable tools and components. Reliable sensors are among the most important of these tools. For example, these sensors help to monitor processes, detect and pass on information regarding errors, and control process flows.

To enable customers to use Pepperl+Fuchs sensors in explosion-protected areas, the company has made a range of selected factory automation sensors suitable for use in Zone 1 or 21, and 2 or 22.

Digitalisation as the Basis for Automation

The digitalisation of process information is vital to enabling the implementation of automated processes. Only by digitally processing information can we remotely monitor statuses, carry out measurements, and check maintenance documentation. Supporting devices, such as sensors from Pepperl+Fuchs, are used to digitise analog information and signals. These devices record, analyze, and convert the process information, then use a suitable interface to pass this information on to a central control interface.

Technology that has long been considered standard in factory automation is now gradually making its way into process automation and therefore explosion-protected areas as well.  Sensors used in these areas should be capable of simplifying sensitive process flows and increasing safety. Mechanical integration of sensors should therefore be simplified and standardized wherever possible.

Automation of the Process Industry

Advancements in the automation of process plants have resulted in changes to customer requirements. It is becoming increasingly common for plants to be networked and automated, which subsequently increases the complexity of explosion protection.

The complex requirements for explosion protection are not due to changes to processes in particular, but rather they are due to the changes in technical capabilities in general. In turn, this means that approaches to problem solving are constantly changing, thus increasing the need for solutions that use tried-and-tested industrial sensor technology, including for explosion protection.

One thing that is clear is that sensors that increase the productivity and safety of plants in factory automation can also be used in process automation. This results in increased customer requirements for hazardous areas requirements that can be met using sensor technology.

Difficulties implementing this technology are often due to the significant purchase and maintenance costs of sensors, and especially the complex approvals and certifications required for explosion protection. Customers often want sensors to be fitted in potentially hazardous locations, posing even greater challenges. Based on this premise, our engineers have developed the ideal solution for optimising customer processes.

This is demonstrated by a project undertaken with a manufacturer of fall protection systems for filling tankers with liquids. Fall protection systems are necessary because the process of filling tankers with liquid chemicals is not fully automated, instead it is always carried out by workers on a platform. This means that one wrong decision by an individual can have far-reaching consequences for people and the environment.

Pepperl+Fuchs helped these customers to implement the existing process for non-hazardous areas in hazardous areas. During this process, the R2000 2-D LIDAR scanner monitors the position of the fall protection device. The scanner is mounted under the platform railing and scans the area below the device. Before the filling process, if the personnel lower the lifting platform too close to the tank carriage below, the scanner triggers a dual warning signal—a flashing light and audible signal.

In addition, the movement of the platform is automatically stopped to allow the personnel to react and use the controls to move the lifting platform into the right position. This eliminates the risk of damage to lifting platforms and railings and even eliminates the risk of crashes, which often result in injury to personnel.

This process was implemented in hazardous areas by housing the scanner in an Ex d aluminum housing with an integrated viewing window. The scanner is installed in the housing at a 15° angle to prevent refraction from scattering and distorting signals. This guarantees that the scanner is fully functional. The solution was approved for hazardous zones 1, 2, 21, and 22.

This solution allowed the customer to maintain existing structures on the plant and, in turn, enabled its customers to safely monitor the filling process for chemical substances, even in hazardous areas.

Versatile Applications for Sensors in Hazardous Areas

The use of sensor technology is becoming increasingly common, even in harsh environments such as oil platforms. An example of this is an oil platform in Malaysia. To increase safety for its employees, the oil company was searching for a solution that was capable of enforcing access restrictions for critical areas and documenting employee locations.

Pepperl+Fuchs developed a solution by working together with a tracking software company that specializes in this type of application. The software is visualized using a human machine interface (HMI) device that is connected to the central computer. Persons are recorded by a radio frequency identification (RFID) system, which is housed in an Ex d housing and is therefore specially approved for use in potentially explosive environments.

Just like in any production facility, employees must first register their presence using a tag to access each area of the oil platform. All process-related information is stored locally on the tag itself, thus enabling track-and-trace applications. Unique identifiers allow raw materials, products, or, in this case, personnel, to be assigned and tracked. The backend software determines whether the employee is authorized to access the area in question. If so, the software unlocks the relevant cabinets and doors.

The software simultaneously documents the employee’s current location. This is particularly important in emergency situations. When an alarm is triggered, information about the exact location of personnel is essential for evacuation purposes.

Other sensors are also suitable for use in hazardous areas—for example, sensors using pulse ranging technology (PRT) for object detection. This same technology is also used by the R2000. The sensors are installed in Ex d housings to allow them to monitor a wide variety of different processes.

A powerful light source in the sensor emits short pulses that are reflected by the target object and then captured by a highly precise, light-sensitive receiver element. The distance to the target object is then calculated from the values recorded.

A Norwegian manufacturer of hoses and flexible tubes for oil production uses this technology to determine the fill level of its storage facility—as you would expect, this involves hazardous areas. The VDM28 sensor installed in the Ex housing enables a measuring range of up 50 m from the reflector. If the fill level is not reached, this triggers automatic processes for filling the position or ordering more materials.

Inclination sensors such as the INX360 are placed in Ex d housings, enabling them to be used in tunnel drilling plants for monitoring the angle of the drilling arm. 360° control allows any unwanted movement of the drill to be detected and limited immediately.

The unique technology used means that the measurement result is not influenced by the changes in speed that are unavoidable in mobile applications. The error-free inclination detection in this dynamic application therefore enables high-precision drilling.

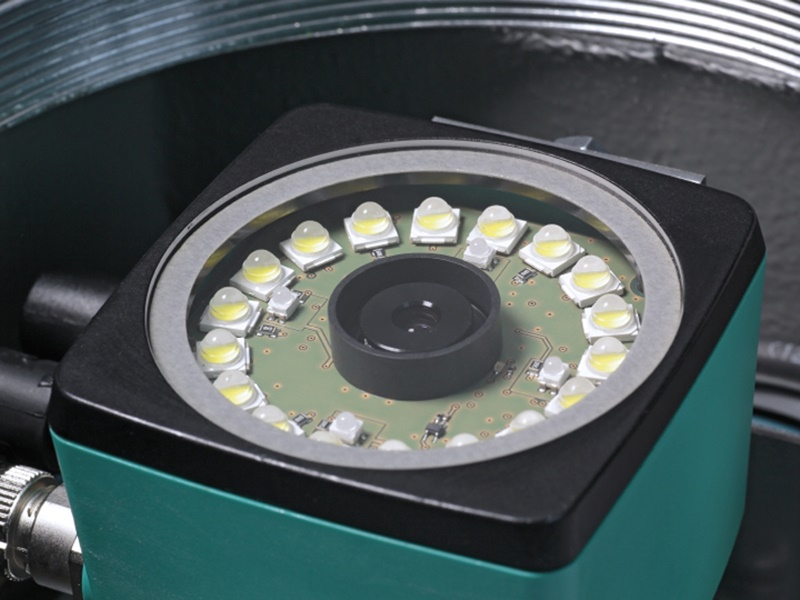

Stationary readers such as the OPC120 are used to read 1-D and 2-D codes quickly and reliably in hazardous areas. The devices are so precise that even reflective surfaces can be reliably recorded.

The list of examples is endless. Pepperl+Fuchs therefore not only offers “engineered” solutions for specific customer requirements and applications. The company also offers standardized, “off-the-shelf” products that are capable of simplifying a number of process operations when placed in Ex d enclosures. Pepperl+Fuchs offers a selection of standardized and certified sensors that are permitted for use in zones 1, 21, 2, and 22 and have been released for sale.

In addition to the aforementioned INX inclination sensors, OPC readers and VDM28 distance sensors, IQH and IUH read/write heads, and VLM350 laser light sensors are also available. These devices have been reinforced for use in the approved areas and are able to help companies take the next step toward automation.
